We can offer you most spares for your Rayburn cooker. This is how it works
New spares listed are on our site www.agafixspares.com - for instant ordering and payment via credit card, debit card, cheque  - click on that name to GO STRAIGHT THERE.

Second-hand spares are often available from me via Tradcookers Ltd. Best to RING MY MOBILE daytime 07860 676793 to confirm any questions on what you need but look at the "definition charts " below FIRST.

As Rayburn made cookers since 1946 there are many versions , different styles, fuels and conversions to confuse you!
I am aiming to clear out my stock of older model parts and have MOST BRICKS AND GRATES FOR EARLY RAYBURNS IN STOCK.

For example

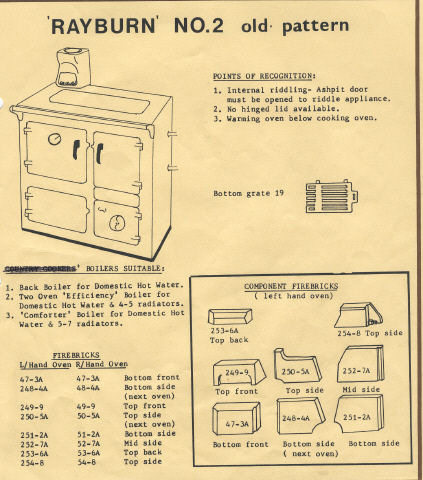

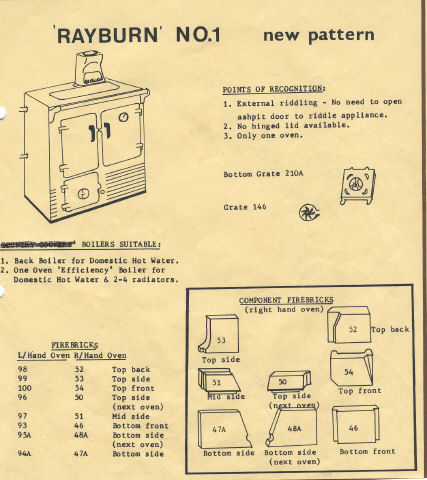

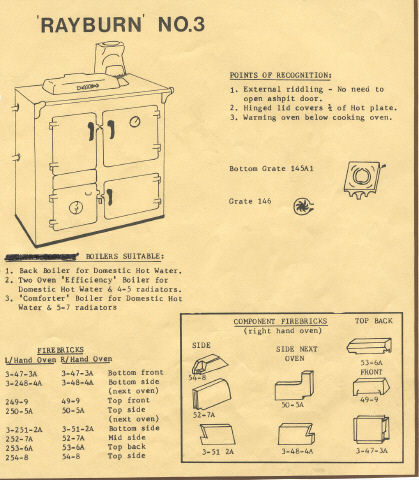

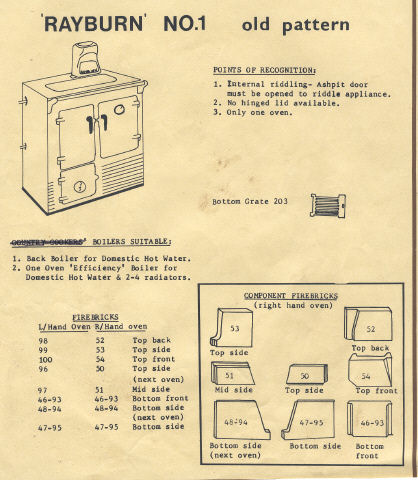

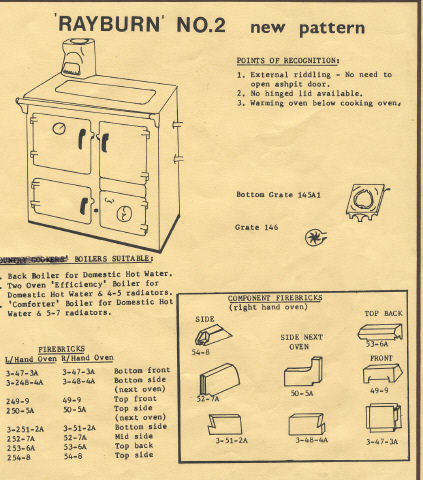

No 1,No2. No3 New pattern circular grates  & flat Old Pattern grates ( 1946-1957!)

Rayburn G7 / G22 Gas Flame Failure Valves. These are OBSOLETE AND UNOBTAINABLE NEW - AS THE MAKERS WHO SUPPLIED RAYBURN ARE OUT OF BUSINESS. I buy in these models and strip out the burners, FFvs and thermostats

We can now supply NEW flame failure valves ( sometimes called mercury vapour valves) for both G7 and G33 cookers ( both sizes) or second hand ones at half new price

LEASE SEE BELOW TO DEFINE YOUR MODEL BEFORE ORDERING - then mail me as well! Restocking charge on returned items!

Determining your Rayburn Model

(1) Doors on front  . Does it have 2, 3 or 4 ?

(2) Hinged lid (s) on top . No - then its probably from 1946-1956 !

 Yes . Does it cover ALL the hob of 2 oven cooker of 3/4 of it? Would it hit the flue box if it covered all the hob?

 One long heavy cast iron lid or 2? Colour of lid

  (3) Riddler. Can you riddle using a knob OUTSIDE the front - between ash pit door & lower oven ( 2 oven version? ) or do you have to push / pull the grate with bottom door open? If you open the door please observe the grate - one piece or several bars running front to back?

Forget pattern number on castings ( except grate numbers !)

(4) Flue box . Is it square ? Or rectangular at base , bulging out to take flue at top ?

(5) Does your cooker run radiators?

(6)Measure it. is it 30" wide and high, or 33" wide and 32" high or bigger?

(7) Oven (s) on LEFT or RIGHT as you look at it?

Mail me these answers & send a photo to my e mail or mobile ( small resolution please!) and I will tell you the cost of parts. Also tell me where you LIVE for delivery costs Fitting details - free friendly advice!

Rayburn Solid Fuel

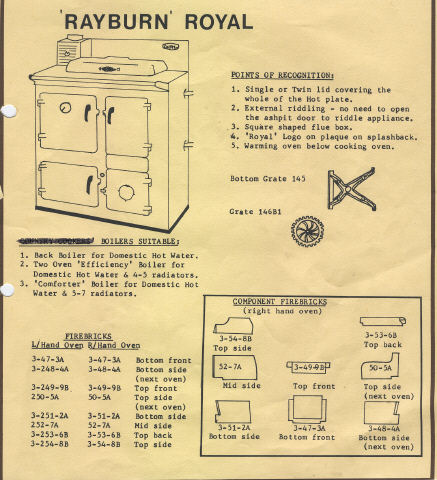

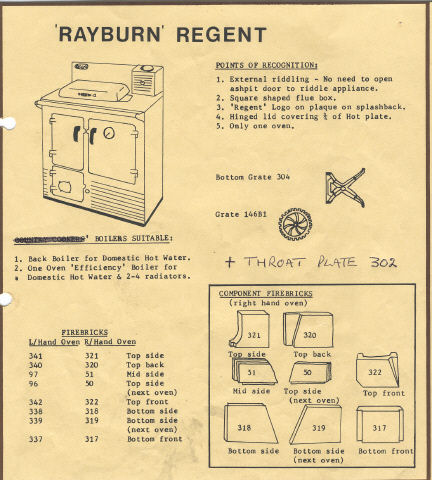

ALL MODELS  No 1,No2, No3 ,Regent, Royal ,MF ,Supreme ,Nouvelle SOLID FUEL BRICK SETS IN STOCK . Both LEFT or RIGHT oven versions inc GRATES as well

Prices, include bricks, grate & cradle (where applicable) plus vat &  delivery England , extra for Scotland & islands ,via  www.agafixspares.com

MF & Supreme . All grates available - contact me!

 You will need a fire cement as well -we stock in different sizes.

The usual parts that wear out in solid fuel versions are

Boilers . When the ASH CAN is wet your boiler has a HOLE IN IT! Plus vat + delivery

New boilers supplied for ALL models from 1946- including those with top outlet pipes, central heating boilers for modifying Royals and Regents, MF & Supreme boilers have MUCH thicker steel  than the originals ( in my opinion )  GAS Nouvelle boilers - try me! Sorry but all prices GONE UP due to massive jump in steel prices this summer

No 1 / Regent     No2, 3, Royal  Vitreous lined for DIRECT SYSTEMS

MF boiler & Solid Fuel Supreme / Nouvelle

Non standard High Output Boiler for 3-4 rads from Regent or No1

Non standard High Output boiler for 5-6 rads for Royal or No2, 3

Connection nipples 5.5" long x 1" BSP

Gas / Oil conversions . Parts available inc new valve only assemblies / burner only assemblies or complete kits

Gas Rayburn Nouvelles. All parts OBSOLETE so sorry can't help- blame Rayburn for stopping supplying.
Conversions BACK to solid fuel- we supply the basic parts and an E book telling you MORE!

Flue boxes . There a 4 different types on most Rayburns - again sometimes in stock .No 1 ,No2 & No3 VERY RARE second-hand, sorry ( over 40 years old!) but we can supply a pattern one in heavy gauge steel

   Riddler blocks & rods   All available - send your old one so I can match it.

Prices vary considerably . To make sure that the correct parts are obtained for your cooker there are 2 ways to check

(a) answer these questions and e mail the answers

(b) take a digi photo of your cooker FRONT plate and one from the TOP and mail it to me

Its far more difficult to get CAST IRON body parts but try me!

So you fancy your Rayburn being Re-Enamelled?

This is fraught with difficulties . Unlike AGAS , Rayburns are NOT designed to be dismantled once they leave the factory. They are bolted together with most parts actually joined to the front plate - so COMPLETE dismantling is the only answer.

Solid Fuel versions . Forget it - the castings are often warped and NO AMOUNT of work will straighten them - in fact they often get MUCH WORSE when re-fired to 800+ degrees centigrade.

Oil / Gas versions have an easier life - so sometimes can be done.

Regards  barry@tradcookers.com
